Circuit Bench 02: Quantum Teleportation¶

What this circuit does¶

A protocol that transmits the exact quantum state of one qubit to another — without physically moving the qubit. Alice has a qubit in some state \(|\psi\rangle\). She wants Bob to have that state, but she can't send the qubit itself. Using a shared Bell pair and two classical bits, she can teleport \(|\psi\rangle\) to Bob's qubit.

This isn't science fiction — it's the backbone of quantum networking, quantum error correction, and measurement-based computation. And it takes only 6 gates.

Circuit components¶

3 qubits (q[0] = Alice's message, q[1] = Alice's half of the Bell pair, q[2] = Bob's half)
1 X gate (x)
2 Hadamard gates (h)
2 CNOT gates (cx)
1 Z gate (z)
Classical-controlled operations (if)
A Quokka (puck or app)

Prerequisites: Circuit Bench 01 — Bell State. You should understand entanglement and the Bell state \(|\Phi^+\rangle\).

Files on the bench¶

Open the source directory on GitHub.

File	Purpose
`teleport.qasm`	Teleport \(\lvert1\rangle\) and apply classically controlled corrections
`expected.txt`	Expected Alice and Bob measurement patterns
`circuit.png`	Circuit diagram, including the classical feed-forward

Background: why can't Alice just copy the qubit?¶

You might think: if Alice knows the state \(|\psi\rangle\), can't she just tell Bob what it is? Or make a copy and send that?

No. Two fundamental theorems forbid it:

No-cloning theorem. There is no quantum operation that takes an unknown state \(|\psi\rangle\) and produces two copies \(|\psi\rangle \otimes |\psi\rangle\). This is a consequence of the linearity of quantum mechanics — if you could clone, you could distinguish non-orthogonal states, which violates unitarity.
Measurement destroys. If Alice measures \(|\psi\rangle\) to learn what it is, she collapses it. She gets one classical bit (0 or 1), but the continuous information in the amplitudes \(\alpha\) and \(\beta\) is lost forever. One measurement can't capture a state from a continuous space.

Teleportation solves this: Alice transfers \(|\psi\rangle\) to Bob without ever learning what \(|\psi\rangle\) is, and without cloning it. The original is destroyed in the process (as it must be — no-cloning is not violated).

Circuit walkthrough¶

We'll teleport the state \(|1\rangle\) from Alice to Bob. (In the code we use x q[0] to prepare this state. You could prepare any state \(|\psi\rangle = \alpha|0\rangle + \beta|1\rangle\) — the protocol works the same.)

Step 1: Prepare the state to teleport¶

x q[0];

Alice's qubit q[0] is now in state \(|1\rangle\). This is her "message" — the state she wants to send to Bob.

The full 3-qubit state is:

\[|1\rangle \otimes |0\rangle \otimes |0\rangle = |100\rangle\]

Step 2: Create a Bell pair between Alice and Bob¶

h q[1];
cx q[1], q[2];

This puts q[1] (Alice's half) and q[2] (Bob's half) into the Bell state \(|\Phi^+\rangle = \frac{1}{\sqrt{2}}(|00\rangle + |11\rangle)\), exactly as in Circuit Bench 01.

The full state is now:

\[|1\rangle \otimes \frac{1}{\sqrt{2}}(|00\rangle + |11\rangle) = \frac{1}{\sqrt{2}}(|100\rangle + |111\rangle)\]

Alice holds q[0] and q[1]. Bob holds q[2]. They can be in different rooms, different cities — it doesn't matter, as long as the Bell pair was shared in advance.

Step 3: Alice's Bell measurement¶

Alice performs a Bell measurement on her two qubits (q[0] and q[1]):

cx q[0], q[1];
h q[0];

measure q[0] -> c0[0];
measure q[1] -> c1[0];

The CNOT and Hadamard effectively "undo" the Bell-state creation, projecting Alice's two qubits onto one of the four Bell states. This entangles Alice's message with the shared Bell pair, transferring the quantum information to Bob's qubit.

Let's trace the math. Before Alice's gates, the state is \(\frac{1}{\sqrt{2}}(|100\rangle + |111\rangle)\).

After cx q[0], q[1] (CNOT with q[0] as control, q[1] as target):

\[\frac{1}{\sqrt{2}}(|1\mathbf{1}0\rangle + |1\mathbf{0}1\rangle)\]

(The bold digit is q[1], which flipped because the control q[0] is \(|1\rangle\).)

After h q[0] (Hadamard on q[0]), recall that \(H|1\rangle = \frac{1}{\sqrt{2}}(|0\rangle - |1\rangle)\):

\[\frac{1}{2}\Big[(|0\rangle - |1\rangle)|10\rangle + (|0\rangle - |1\rangle)|01\rangle\Big]\]

Expanding:

\[\frac{1}{2}\Big[|010\rangle - |110\rangle + |001\rangle - |101\rangle\Big]\]

Regrouping by Alice's measurement outcomes (first two qubits):

\[\frac{1}{2}\Big[|00\rangle(|1\rangle) + |01\rangle(|0\rangle) - |10\rangle(|1\rangle) - |11\rangle(|0\rangle)\Big]\]

Alice measures	Bob's qubit becomes	What Bob needs to do
`00`	\(\\|1\rangle\)	Nothing — it's already \(\\|\psi\rangle = \\|1\rangle\)
`01`	\(\\|0\rangle\)	Apply \(X\) (bit flip)
`10`	\(-\\|1\rangle\)	Apply \(Z\) (phase flip)
`11`	\(-\\|0\rangle\)	Apply \(Z\) then \(X\)

Alice gets one of four equally likely outcomes. No matter which one, Bob's qubit encodes the original state — possibly with known corrections.

Step 4: Bob's corrections¶

Alice sends Bob her two classical measurement bits. Bob applies corrections:

if(c1==1) x q[2];
if(c0==1) z q[2];

If Alice's q[1] measured 1: Bob applies \(X\) (bit flip)
If Alice's q[0] measured 1: Bob applies \(Z\) (phase flip)

After these corrections, Bob's qubit q[2] is in the state \(|1\rangle\) — exactly the state Alice started with.

Step 5: Verify¶

measure q[2] -> c2[0];

Bob measures his qubit to confirm: he should always get 1.

The complete circuit¶

Here's the full QASM file — also available as teleport.qasm:

OPENQASM 2.0;
include "qelib1.inc";

qreg q[3];
creg c0[1];   // Alice's message qubit measurement
creg c1[1];   // Alice's Bell-pair qubit measurement
creg c2[1];   // Bob's qubit measurement (the teleported state)

// Step 1: Prepare the state to teleport — |1⟩
x q[0];

// Step 2: Create a Bell pair between q[1] and q[2]
h q[1];
cx q[1], q[2];

// Step 3: Alice's Bell measurement
cx q[0], q[1];
h q[0];

measure q[0] -> c0[0];
measure q[1] -> c1[0];

// Step 4: Bob's corrections (classically controlled)
if(c1==1) x q[2];
if(c0==1) z q[2];

// Step 5: Measure Bob's qubit
measure q[2] -> c2[0];

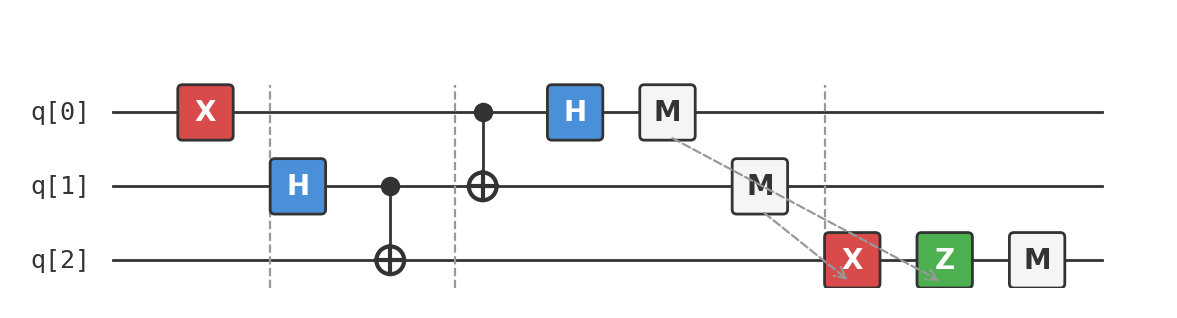

As a circuit diagram:

q[0] (|1⟩) : ── X ─────────────●─── H ─── M ────────────────
                                │                    ║
q[1] (|0⟩) : ────────── H ──●──X──────── M ────────║────────
                             │              ║       ║
q[2] (|0⟩) : ───────────────X─────── if c1: X ── if c0: Z ── M

Run it¶

Copy the contents of teleport.qasm and paste it into your Quokka.

You should see Bob's qubit (c2) always measure 1, regardless of what Alice's measurements (c0, c1) were. The full output has 4 equally likely outcomes:

{'0 0 1': 0.25, '0 1 1': 0.25, '1 0 1': 0.25, '1 1 1': 0.25}

The last bit (Bob's) is always 1. The first two bits (Alice's) are uniformly random. This is the hallmark of teleportation: the message always arrives, regardless of the random measurement outcome.

Try it: Change x q[0] to just remove it entirely (teleporting \(|0\rangle\) instead). Now Bob should always measure 0.

Extend and experiment¶

Teleport \(|0\rangle\). Remove x q[0]; and leave the rest of the circuit unchanged. Alice's two bits remain uniformly random, while Bob's final bit is always 0 ideally.
Teleport and verify \(|+\rangle\). Replace x q[0]; with h q[0];, then add h q[2]; immediately before Bob's final measurement. The extra Hadamard measures Bob in the X basis, where a correctly teleported \(|+\rangle\) gives 0 every time ideally.
Remove the classical corrections. Comment out both if lines and return to the original \(|1\rangle\) input. Bob's bit is no longer fixed: it depends on Alice's random Bell-measurement result. This is the negative control showing that entanglement alone does not complete the protocol.

Analysis¶

The general case: teleporting an arbitrary state

We teleported \(|1\rangle\), but the protocol works for any state \(|\psi\rangle = \alpha|0\rangle + \beta|1\rangle\).

Starting from \(|\psi\rangle \otimes |\Phi^+\rangle\):

\[(\alpha|0\rangle + \beta|1\rangle) \otimes \frac{1}{\sqrt{2}}(|00\rangle + |11\rangle)\]

\[= \frac{1}{\sqrt{2}}\Big[\alpha(|000\rangle + |011\rangle) + \beta(|100\rangle + |111\rangle)\Big]\]

After CNOT (q[0] → q[1]) and Hadamard on q[0], the state becomes:

\[\frac{1}{2}\Big[|00\rangle(\alpha|0\rangle + \beta|1\rangle) + |01\rangle(\alpha|1\rangle + \beta|0\rangle) + |10\rangle(\alpha|0\rangle - \beta|1\rangle) + |11\rangle(\alpha|1\rangle - \beta|0\rangle)\Big]\]

So:

Alice measures	Bob has	Correction
\(00\)	\(\alpha\\|0\rangle + \beta\\|1\rangle\)	\(I\) (none)
\(01\)	\(\alpha\\|1\rangle + \beta\\|0\rangle\)	\(X\)
\(10\)	\(\alpha\\|0\rangle - \beta\\|1\rangle\)	\(Z\)
\(11\)	\(\alpha\\|1\rangle - \beta\\|0\rangle\)	\(ZX\)

In every case, Bob recovers \(|\psi\rangle\) after applying the correction \(\{I, X, Z, ZX\}\). The amplitudes \(\alpha\) and \(\beta\) are perfectly preserved — even though Alice never learned their values.

What teleportation is NOT

Common misconceptions:

"Faster-than-light communication." No. Alice's measurement outcomes are random; they carry no information. Bob can't use his qubit until he receives Alice's classical bits — which travel at most at the speed of light. Teleportation respects relativity.

"Copying a quantum state." No. After teleportation, Alice's original qubit is in state \(|0\rangle\) or \(|1\rangle\) (collapsed by measurement). The state was transferred, not copied. No-cloning holds.

"Transmitting the qubit itself." No. What's transmitted is the state — the quantum information (\(\alpha\), \(\beta\)). The physical qubit stays with Alice. Bob's qubit (which was in a completely different state before) now carries the information.

"Useful only for communication." Actually, teleportation's biggest application is in quantum computing itself. Measurement-based quantum computation (one-way QC) uses teleportation as its fundamental operation. And quantum error correction codes use teleportation-like circuits to move logical qubits.

The Bell measurement, deconstructed

Alice's circuit — CNOT followed by Hadamard — is performing a Bell measurement: projecting her two qubits onto the Bell basis \(\{|\Phi^+\rangle, |\Phi^-\rangle, |\Psi^+\rangle, |\Psi^-\rangle\}\).

Why does CNOT + H do this? Because the Bell-state creation circuit is H + CNOT:

\[|00\rangle \xrightarrow{H \otimes I} \frac{1}{\sqrt{2}}(|0\rangle + |1\rangle)|0\rangle \xrightarrow{\text{CNOT}} \frac{1}{\sqrt{2}}(|00\rangle + |11\rangle) = |\Phi^+\rangle\]

The inverse is CNOT + H (since both are self-inverse):

\[|\Phi^+\rangle \xrightarrow{\text{CNOT}} \frac{1}{\sqrt{2}}(|0\rangle + |1\rangle)|0\rangle \xrightarrow{H \otimes I} |00\rangle\]

So CNOT + H maps each Bell state to a unique computational basis state:

Bell state	After CNOT + H	Measurement
\(\\|\Phi^+\rangle\)	\(\\|00\rangle\)	`00`
\(\\|\Phi^-\rangle\)	\(\\|10\rangle\)	`10`
\(\\|\Psi^+\rangle\)	\(\\|01\rangle\)	`01`
\(\\|\Psi^-\rangle\)	\(\\|11\rangle\)	`11`

This is elegant: you don't need a special "Bell measurement device." You just reverse the Bell creation circuit and measure in the computational basis.

Resource cost and classical communication

Teleportation consumes:

1 Bell pair (shared in advance — the entanglement is "used up")
2 classical bits of communication (Alice → Bob)
1 qubit of quantum information transferred

This is optimal. You can't teleport with fewer than 2 classical bits (proven by Holevo's theorem — one qubit carries at most one classical bit, but the correction requires two bits of choice among \(\{I, X, Z, ZX\}\)).

The Bell pair is consumed: after the protocol, q[1] and q[2] are no longer entangled. If Alice wants to teleport another qubit, she needs a fresh Bell pair. This makes entanglement a resource — created, distributed, consumed.

Superdense coding is the flip side: given a shared Bell pair, Alice can transmit 2 classical bits by sending 1 qubit. Teleportation trades 1 Bell pair + 2 classical bits for 1 qubit of quantum information. Superdense coding trades 1 Bell pair + 1 qubit for 2 classical bits. They're dual protocols.

Practical notes¶

Try teleporting different states. Replace x q[0] with h q[0] to teleport \(|+\rangle = \frac{1}{\sqrt{2}}(|0\rangle + |1\rangle)\). Now Bob's measurement should give 50/50. Or use ry(0.6) q[0] for an arbitrary superposition.
The classical bits are essential. Remove the if corrections and Bob's qubit becomes maximally mixed — completely random, no information. This is why teleportation doesn't violate relativity: without Alice's classical message (which travels at ≤ light speed), Bob has noise.
Teleportation in the real world. Teleportation has been demonstrated over 1,400 km via satellite (Micius, 2017) and across metropolitan fiber networks. It's the building block of a future quantum internet.
If you liked this, try: Circuit Bench 03 (Deutsch-Jozsa) uses the same Hadamard + entanglement tools but for a different purpose: solving a problem faster than any classical algorithm. Circuit Bench 04 (Bernstein-Vazirani) extends the same pattern to discover hidden structure.
