Circuit Bench 06: Grover's Search

What this circuit does

An algorithm that finds a needle in a haystack — quadratically faster than checking every straw. Given a list of \(N = 2^n\) items and a black-box function that recognises the target, Grover's algorithm finds it in \(O(\sqrt{N})\) queries instead of the classical \(O(N)\).

For 3 qubits (\(N = 8\)), a classical search needs up to 8 guesses. Grover's needs 2. For \(n = 20\) (\(N \approx\) 1 million), classical needs ~500,000 guesses on average; Grover's needs ~785.

This isn't an exponential speedup (that was Simon's), but it's universal — it applies to any search problem, with no structural assumptions about the function. And it's provably optimal: no quantum algorithm can do unstructured search faster than \(O(\sqrt{N})\).

Circuit components

• 3 qubits
• Hadamard gates (h)
• X gates (x)
• Toffoli gate (ccx)
• A Quokka (puck or app)

Prerequisites: Circuit Bench 03 — Deutsch-Jozsa for phase kickback, and comfort with multi-qubit gates.

Files on the bench

Open the source directory on GitHub.

File	Purpose
grovers.qasm	Run two Grover iterations for target \(\lvert101\rangle\)
expected.txt	Expected target probability and shot counts

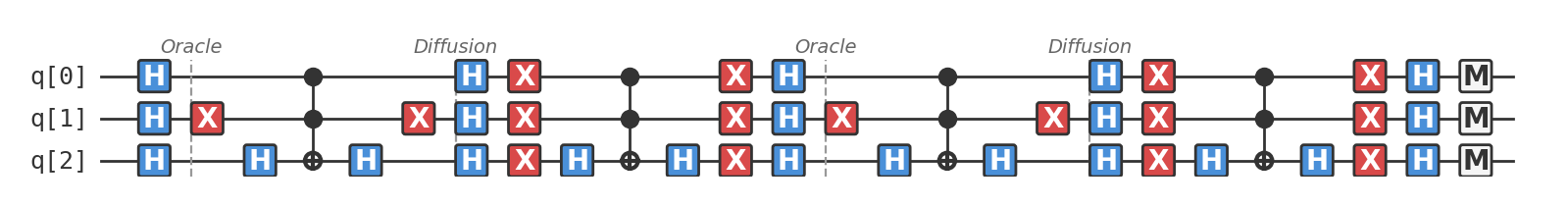

circuit.png	Full oracle-and-diffusion circuit diagram

Background: searching without structure

The earlier Circuit Bench notes exploited structure in the oracle — linearity (Bernstein-Vazirani), periodicity (Simon). Grover's algorithm assumes nothing. The oracle is a black box:

\[O|x\rangle = (-1)^{f(x)}|x\rangle\]

where \(f(x) = 1\) for the target and \(f(x) = 0\) for everything else. No patterns, no shortcuts — just a single marked item hidden among \(N\) possibilities.

The classical approach is brute force: check items one by one. On average, you need \(N/2\) queries.

Grover's approach: start in a uniform superposition, then repeatedly amplify the amplitude of the correct answer while suppressing the wrong ones. After about \(\frac{\pi}{4}\sqrt{N}\) iterations, the target has nearly all the probability.

Circuit walkthrough

Step 1: Create uniform superposition

h q[0];
h q[1];
h q[2];

\[|\psi\rangle = \frac{1}{\sqrt{8}} \sum_{x=0}^{7} |x\rangle\]

Every item has equal amplitude \(\frac{1}{\sqrt{8}} \approx 0.354\) and equal probability \(\frac{1}{8} = 12.5\%\).

Step 2: The Grover iteration (repeat twice)

Each iteration consists of two parts: the oracle and the diffusion operator.

Part A: Oracle — mark the target

Our target is \(|101\rangle\). The oracle flips its phase:

x q[1];              // flip q[1] (because target has q[1]=0)
h q[2];
ccx q[0], q[1], q[2];  // Toffoli gate
h q[2];
x q[1];              // unflip q[1]

The Toffoli (CCX) gate flips q[2] when both q[0] and q[1] are 1. By flipping q[1] first (so \(0 \to 1\)), we make it trigger on the pattern \(q[0]=1, q[1]=0, q[2]=\) anything. The H-CCX-H sandwich on q[2] converts the bit-flip to a phase-flip (the same phase kickback trick from the earlier notes).

After the oracle, the state is the same as before except \(|101\rangle\) has a negative sign.

Part B: Diffusion — amplify the target

The diffusion operator reflects the state about the mean amplitude:

h q[0]; h q[1]; h q[2];
x q[0]; x q[1]; x q[2];
h q[2];
ccx q[0], q[1], q[2];
h q[2];
x q[0]; x q[1]; x q[2];
h q[0]; h q[1]; h q[2];

This implements \(2|\psi\rangle\langle\psi| - I\), where \(|\psi\rangle = H^{\otimes n}|0\rangle^{\otimes n}\) is the uniform superposition.

What it does geometrically: The oracle flipped the target's amplitude below the mean. The diffusion operator reflects everything about the mean, pushing the target's amplitude above the mean and suppressing the non-targets below. Each iteration increases the gap.

Why 2 iterations?

For \(N = 8\) and 1 marked item, the optimal number of iterations is:

\[k = \left\lfloor \frac{\pi}{4}\sqrt{N} \right\rfloor = \left\lfloor \frac{\pi}{4}\sqrt{8} \right\rfloor = \left\lfloor 2.22 \right\rfloor = 2\]

After 2 iterations, the target has probability \(\sin^2\left(\frac{2 \cdot 2 + 1}{2} \cdot \sin^{-1}\frac{1}{\sqrt{8}}\right) \approx 0.945\) — about 94.5%.

Step 3: Measure

measure q[0] -> c[0];
measure q[1] -> c[1];
measure q[2] -> c[2];

With ~94.5% probability, you get \(101\). If not, run again — two attempts give 99.7% cumulative success.

The complete circuit

Available as grovers.qasm:

OPENQASM 2.0;
include "qelib1.inc";

qreg q[3];
creg c[3];

h q[0];
h q[1];
h q[2];

// === Grover iteration 1 ===
// Oracle: mark |101⟩
x q[1];
h q[2];
ccx q[0], q[1], q[2];
h q[2];
x q[1];

// Diffusion operator
h q[0]; h q[1]; h q[2];
x q[0]; x q[1]; x q[2];
h q[2];
ccx q[0], q[1], q[2];
h q[2];
x q[0]; x q[1]; x q[2];
h q[0]; h q[1]; h q[2];

// === Grover iteration 2 ===
// Oracle: mark |101⟩
x q[1];
h q[2];
ccx q[0], q[1], q[2];
h q[2];
x q[1];

// Diffusion operator
h q[0]; h q[1]; h q[2];
x q[0]; x q[1]; x q[2];
h q[2];
ccx q[0], q[1], q[2];
h q[2];
x q[0]; x q[1]; x q[2];
h q[0]; h q[1]; h q[2];

measure q[0] -> c[0];
measure q[1] -> c[1];
measure q[2] -> c[2];

The full circuit with both iterations and labeled Oracle/Diffusion sections:

Run it

Paste grovers.qasm into your Quokka. You should see something like:

{'101': 968, '000': 8, '001': 8, '010': 8, '011': 8, '100': 8, '110': 8, '111': 8}

The target \(|101\rangle\) dominates with ~94.5% of the shots. The other 7 states share the remaining ~5.5%.

Try different targets

To search for a different state, change the oracle:

• \(|000\rangle\): Remove both X gates around the Toffoli (or use X on all three qubits)
• \(|111\rangle\): Remove the X on q[1] — the Toffoli naturally triggers on all-1s
• \(|011\rangle\): Apply X to q[0] instead of q[1] before/after the Toffoli

The diffusion operator stays the same regardless of the target.

Extend and experiment

1. Compare iteration counts. Delete the second Grover iteration to run one iteration, then make another copy with a third iteration. For this \(N=8\), one-target problem, the ideal target probabilities are about 78%, 95%, and 33% after one, two, and three iterations. More iterations are not always better.
2. Change the marked state. To mark \(|111\rangle\), remove the x q[1]; gates around both oracle Toffolis and leave the diffusion operators unchanged. The dominant output should move from 101 to 111.
3. Disable amplitude amplification. Keep the oracle but remove the diffusion block from each iteration. A phase flip alone does not change Z-basis probabilities, so the target no longer dominates. This isolates the interference step from the marking step.

Analysis

Geometric interpretation: rotations in a 2D plane

The deepest way to understand Grover's algorithm is geometrically.

Define two states:

• \(|w\rangle\) = the target state (the "winner")
• \(|w^\perp\rangle\) = the uniform superposition over all non-target states, normalised

The initial state \(|\psi\rangle = \frac{1}{\sqrt{N}}\sum_x |x\rangle\) lives in the 2D plane spanned by \(|w\rangle\) and \(|w^\perp\rangle\):

\[|\psi\rangle = \sin\theta \, |w\rangle + \cos\theta \, |w^\perp\rangle\]

where \(\sin\theta = \frac{1}{\sqrt{N}}\) (the initial amplitude of the target).

The oracle \(O = I - 2|w\rangle\langle w|\) reflects the state about \(|w^\perp\rangle\).

The diffusion \(D = 2|\psi\rangle\langle\psi| - I\) reflects the state about \(|\psi\rangle\).

Two reflections = a rotation. Each Grover iteration rotates the state by \(2\theta\) towards \(|w\rangle\). After \(k\) iterations:

\[G^k|\psi\rangle = \sin((2k+1)\theta) \, |w\rangle + \cos((2k+1)\theta) \, |w^\perp\rangle\]

The probability of measuring \(|w\rangle\) is \(\sin^2((2k+1)\theta)\). This is maximised when \((2k+1)\theta \approx \frac{\pi}{2}\), giving:

\[k_{\text{opt}} = \left\lfloor \frac{\pi}{4\theta} \right\rfloor \approx \left\lfloor \frac{\pi}{4} \sqrt{N} \right\rfloor\]

For \(N = 8\): \(\theta = \arcsin(1/\sqrt{8}) \approx 0.3614\), so \(k_{\text{opt}} = \lfloor 2.22 \rfloor = 2\), and \(\sin^2(5 \times 0.3614) \approx 0.945\).

Too many iterations is bad! If you overshoot, the rotation goes past \(|w\rangle\) and the probability decreases. Grover's algorithm has a "sweet spot" and you need to know (or estimate) the number of solutions to choose \(k\) correctly. Circuit Bench 12 (Quantum Counting) addresses this.

The diffusion operator as reflection about the mean

The diffusion operator \(D = 2|\psi\rangle\langle\psi| - I\) has a nice interpretation in terms of amplitudes.

Let the current state be \(|\phi\rangle = \sum_x \alpha_x |x\rangle\) with mean amplitude \(\bar{\alpha} = \frac{1}{N}\sum_x \alpha_x\). Then:

\[D|\phi\rangle = \sum_x (2\bar{\alpha} - \alpha_x)|x\rangle\]

Each amplitude is reflected about the mean: if \(\alpha_x < \bar{\alpha}\), it gets pushed above; if \(\alpha_x > \bar{\alpha}\), it gets pushed below.

After the oracle: the target has amplitude \(-\frac{1}{\sqrt{N}}\) (negative), while non-targets have \(+\frac{1}{\sqrt{N}}\). The mean is approximately \(\frac{1}{\sqrt{N}}(1 - \frac{2}{N})\).

After diffusion: the target's amplitude increases to approximately \(\frac{3}{\sqrt{N}}\), while non-targets decrease slightly. Each iteration transfers probability from non-targets to the target.

Why the circuit implements \(2|\psi\rangle\langle\psi| - I\):

\[D = H^{\otimes n} \cdot (2|0\rangle\langle 0| - I) \cdot H^{\otimes n}\]

Since \(|\psi\rangle = H^{\otimes n}|0^n\rangle\), conjugating the \(|0\rangle\langle 0|\) reflection by \(H^{\otimes n}\) gives the \(|\psi\rangle\langle\psi|\) reflection. The circuit H, X, (controlled-Z), X, H implements \(2|0\rangle\langle 0| - I\) because the X gates convert \(|0^n\rangle\) to \(|1^n\rangle\), and the multi-controlled Z flips the phase of \(|1^n\rangle\) only.

Optimality: the BBBV lower bound

Theorem (Bennett, Bernstein, Brassard, Vazirani, 1997): Any quantum algorithm that solves unstructured search with \(N\) items and \(M\) solutions requires \(\Omega(\sqrt{N/M})\) queries.

Grover's algorithm achieves \(O(\sqrt{N/M})\), so it is asymptotically optimal.

Proof idea: The "hybrid method" or "polynomial method." Consider two oracles that differ on a single item. After \(T\) queries, the quantum states produced by the two oracles have overlap at least \(1 - O(T/\sqrt{N})\). To distinguish them (and thus find the marked item), you need \(T = \Omega(\sqrt{N})\).

This means:

• No quantum algorithm can do better than \(\sqrt{N}\) for unstructured search
• The quadratic speedup is the best possible without additional structure
• Quantum computers cannot solve NP-complete problems in polynomial time using Grover's alone (since \(\sqrt{2^n}\) is still exponential)

This last point is sometimes misunderstood: Grover gives a square root speedup, not a polynomial-to-polynomial one. It makes NP problems faster but not easy.

Multiple solutions and unknown number of targets

If there are \(M\) solutions among \(N\) items, the optimal number of iterations is \(\frac{\pi}{4}\sqrt{N/M}\).

The geometric picture still works: the initial overlap with the "winners subspace" is \(\sin\theta = \sqrt{M/N}\) (instead of \(1/\sqrt{N}\)), so the rotation angle is larger and fewer iterations are needed.

But what if you don't know \(M\)? You can't choose the optimal \(k\) without knowing \(\sin\theta\).

Solution 1: Exponential search. Try \(k = 1, 2, 4, 8, \ldots\). For each \(k\), pick a random multiplier \(\lambda \in [1, 4/3]\) and run \(\lfloor \lambda k \rfloor\) iterations. This finds a solution in \(O(\sqrt{N/M})\) total queries even without knowing \(M\). (Boyer, Brassard, Høyer, Tapp, 1998.)

Solution 2: Quantum Counting. Use Circuit Bench 10 (QPE) on the Grover operator to estimate \(\theta\) directly, giving you \(M\) without searching. Then run Grover's with the right \(k\). See Circuit Bench 12.

The oracle as a phase oracle: implementation patterns

In this note, we build the oracle for \(|101\rangle\) using a Toffoli gate. Here's the general pattern for marking an arbitrary \(n\)-qubit target \(|t\rangle\):

1. For each qubit \(i\) where \(t_i = 0\): apply X before and after the multi-controlled-Z
2. Apply a multi-controlled-Z gate (which flips the phase of \(|1\rangle^{\otimes n}\))

The multi-controlled-Z on \(n\) qubits can be decomposed into Toffoli + CNOT gates using \(O(n)\) ancilla qubits, or \(O(n^2)\) basic gates without ancillas.

For practical problems, the oracle isn't built from the target string (that would mean you already know the answer). Instead, it encodes a verification function — for example:

• SAT solving: The oracle checks if an assignment satisfies a Boolean formula
• Cryptography: The oracle checks if a key produces a known ciphertext
• Optimization: The oracle checks if a solution meets a threshold

In each case, building the oracle circuit is the hard part; Grover's amplification machinery is the same regardless.

Practical notes

• Quadratic, not exponential. Grover gives \(\sqrt{N}\) instead of \(N\) — a square root speedup. For \(N = 10^6\), that's 1000 vs. 500,000. Significant, but not the same league as Simon/Shor's exponential speedups.

• Don't iterate too much! Unlike classical search (where more tries always help), Grover's has an optimal stopping point. Overshoot and the probability of the target decreases. This is the quantum analogue of a pendulum swinging past the bottom.

• The Toffoli gate. The CCX (Toffoli) gate flips the target qubit if both controls are 1. It's the quantum AND gate and a universal building block for reversible computation. We use it here to mark a specific 3-qubit state.

• If you liked this, try: Circuit Bench 07 (QAOA) uses a different strategy for combinatorial optimization — variational rather than exact. Circuit Bench 12 (Quantum Counting) combines Grover with QPE to count solutions without finding them.
